Dorset Raynet are currently investigating the use of Meshtastic® for a short messaging capability. Further details are available at Meshtastic,
Image courtesy of Meshtastic® website.
MeshTastic
GB7MD
GB7MD is not Wires-X connected.
Repeater 439.400 MHz TX 430.400 MHz RX -9.000 MHz shift with NO Tones. Fusion Only.
Located Milton Abbas.
GB7CM
Dorset RAYNET has successfully relocated GB7CM to the hilltop site near Milton Abbas. The Keeper/NoV holder is MATT PHILLIPS [M0MRP]
From https://ukrepeater.net/my_repeater.php?id=5084
Band: 2M(RV56) Output frequency: 145.7000 MHz RX Frequency: 145.1000 MHz
This repeater is licensed for ANALOGUE VOICE repeat mode and uses CTCSS tone of 71.9 Hz
This repeater is licensed for the proprietary Yaesu FUSION DV Mode.

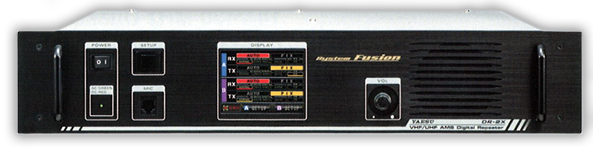

GB7CM utilises a Yaesu DR-2X connected to the Yaesu HRI-200 box for Wires-X capability. Further information on the Yaesu System Fusion cand be found here http://systemfusion.yaesu.com/
Currently utilising lower antenna due local QRM.
First post
Welcome to the refreshed Dorset Raynet website. In due time we will endeavour to include previous content and members pages but that is a lot of work to do ! Bear with us.
